Introduction#

This session is the practical step-by-step guide to constructing the CREATIVenergie Expanding Bag Digester. Work through each step carefully and refer to the sizing tables from Session 2 to confirm your dimensions before you begin.

Note

Three standard sizes are available: 5 m³, 8 m³, and 13 m³. Downloadable CAD drawings for each size are available on the CREATIVenergie website.

Case Study: Overview of a Working Digester#

Sanile gives an overview of how a completed CREATIVenergie digester looks and works.

Case Study: Uses of Biogas Demo#

Tools and Materials Checklist#

Before starting, confirm you have:

  • Sizing table for your chosen digester size

  • CAD drawing for your size

  • String line and posts (for reference line)

  • Tape measure

  • Spade and pick

  • Cement, sand, and aggregate (for base)

  • Bricks and mortar (for inlet and outlet chambers)

  • Pond liner / digester bag

  • PVC gas pipe, valves, and fittings

  • Inlet and outlet covers (hinged to prevent wind damage)

  • Steel wool (for Hâ‚‚S filter — replace monthly)

  • Bubbler

  • Rock salt or caustic soda solution (if tree roots present)

Step-by-Step Construction#

Step 1: Set Up the Reference Line#

Establish a horizontal reference line across the site using posts and string. All depth measurements during construction will be taken from this line.

Tip

The reference line is your single most important measurement tool. Set it level and keep it in place throughout the build.

Reference line set up across the construction site

Fig. 19 Step 1 in the field: string line and posts marking the horizontal datum for all subsequent depth measurements.#

Step 2: Mark the Excavation Area#

Using the reference line and your CAD drawing, mark out the full footprint of the pit, inlet, and outlet positions on the ground.

Excavation area marked out on the ground

Fig. 20 Step 2: The full pit footprint marked on the ground before excavation begins.#

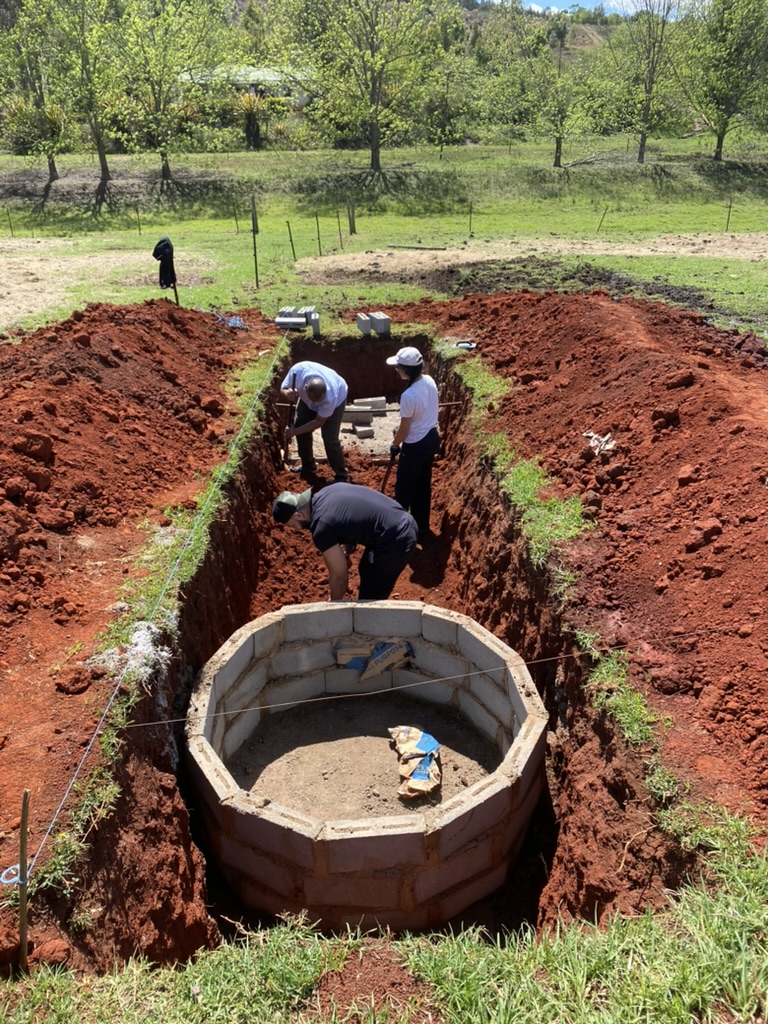

Step 3: Dig the Pit#

Excavate the pit to the dimensions specified in your sizing table. Use the reference line to check depth at multiple points.

  • Remove all roots from the sides and base of the pit.

  • If roots are present nearby, apply rock salt or caustic soda solution and allow to dry before proceeding.

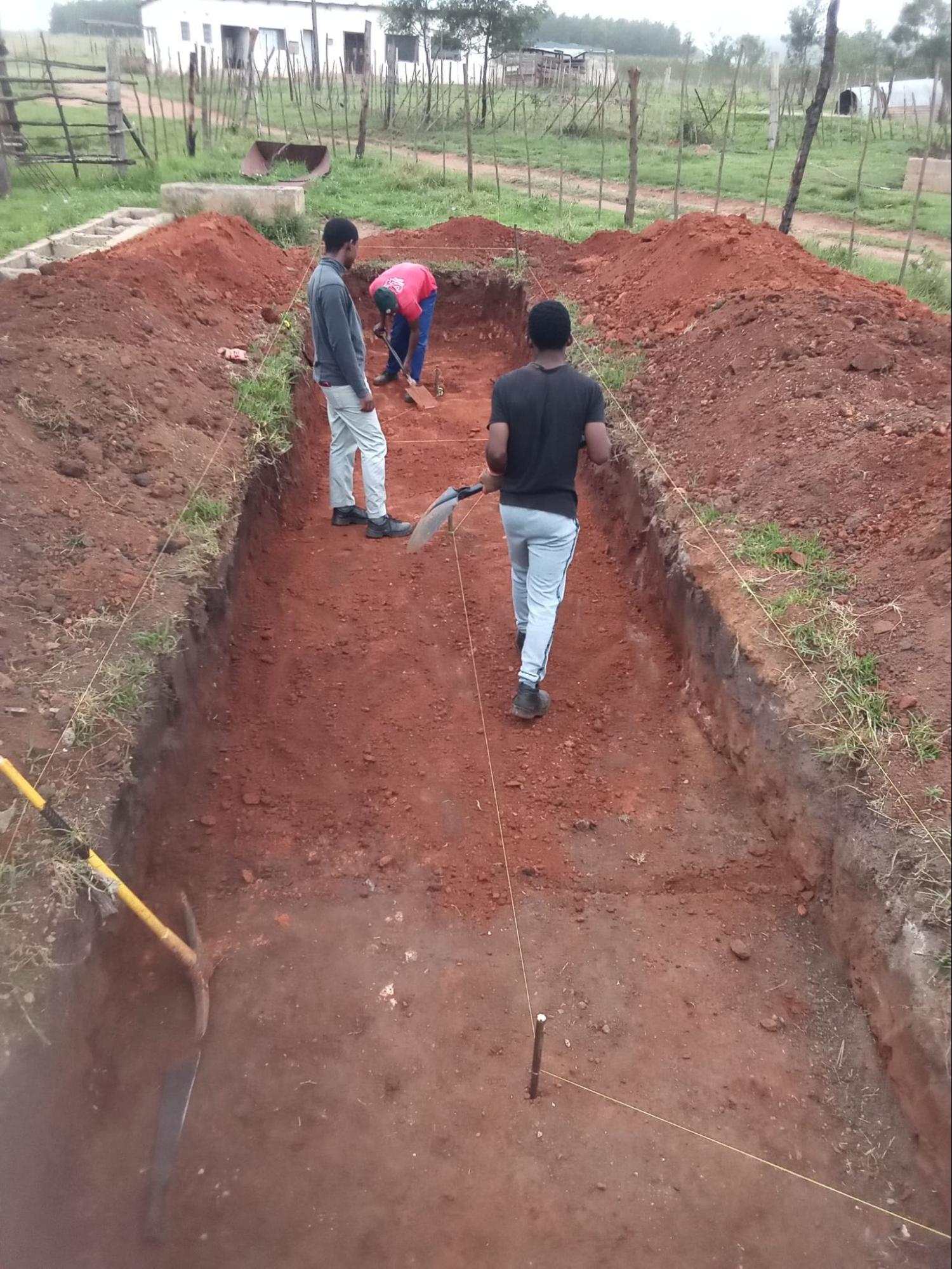

Completed pit excavation — clean walls and base ready for concrete

Fig. 21 Step 3 complete: a clean, root-free excavated pit ready for the concrete base.#

Step 4: Lay the Concrete Base#

Pour and level a concrete base for the inlet and outlet chambers. Allow to cure fully before building brickwork on top.

  • Use the reference line to verify that the base level matches your drawing.

Step 5: Build the Brick Inlet and Outlet Chambers#

Construct the inlet and outlet chambers in brick up to the specified height. Include the throat bricks that keep slurry level correct relative to gas pressure.

Key dimensions to verify against your drawing:

  • Height of outlet (Ho) — must be below the gas pipe outlet height

  • Height of inlet (Hi) — must be higher than Ho to ensure slurry flows from inlet to outlet

Brick inlet chamber under construction

Fig. 22 Step 5a: Building the brick inlet chamber — throat bricks visible at the correct height.#

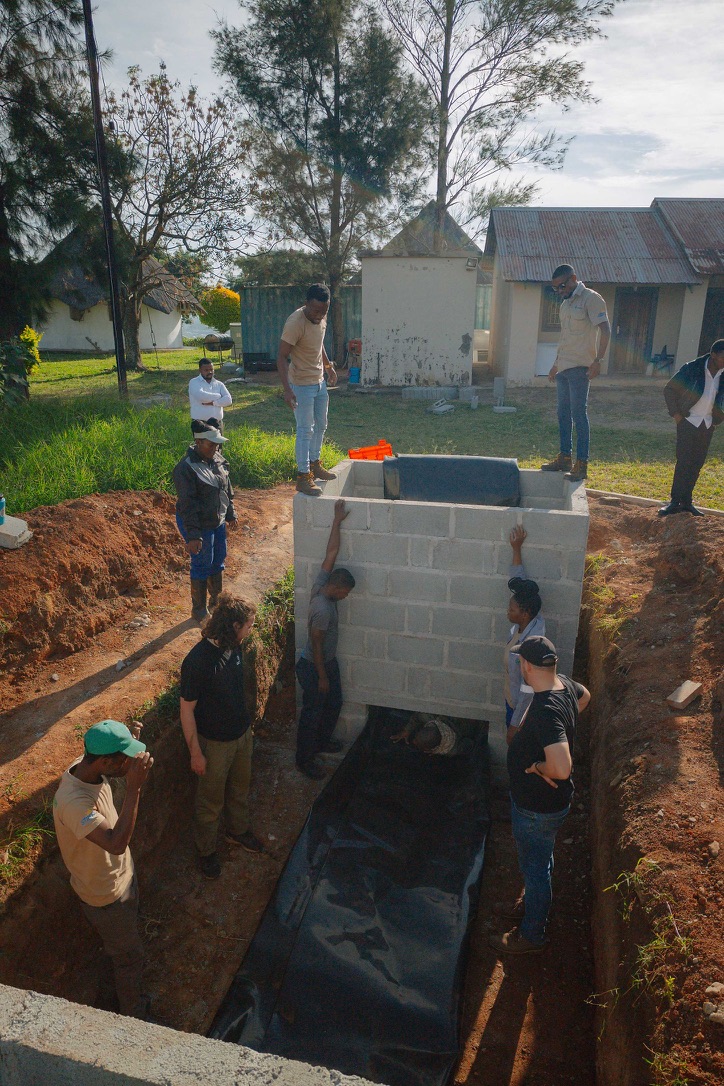

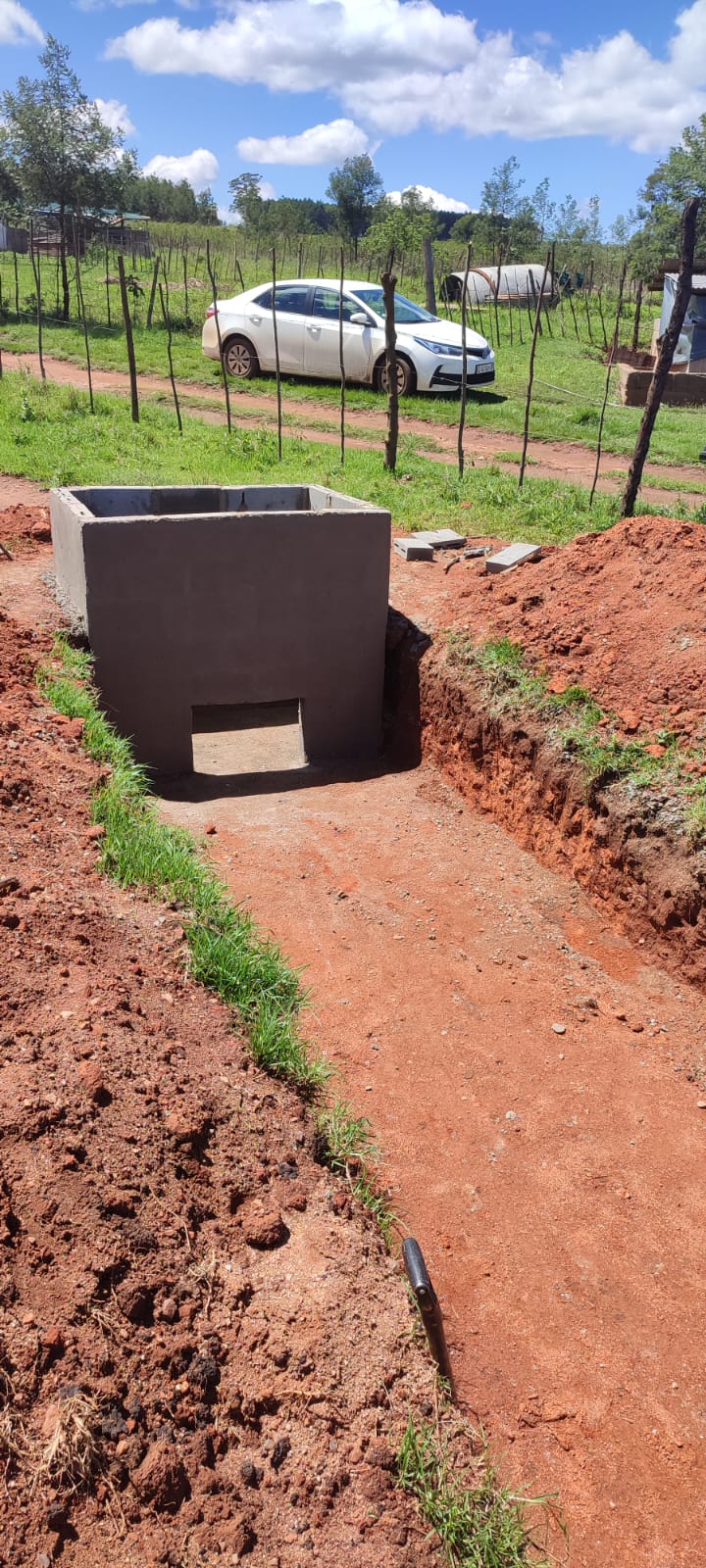

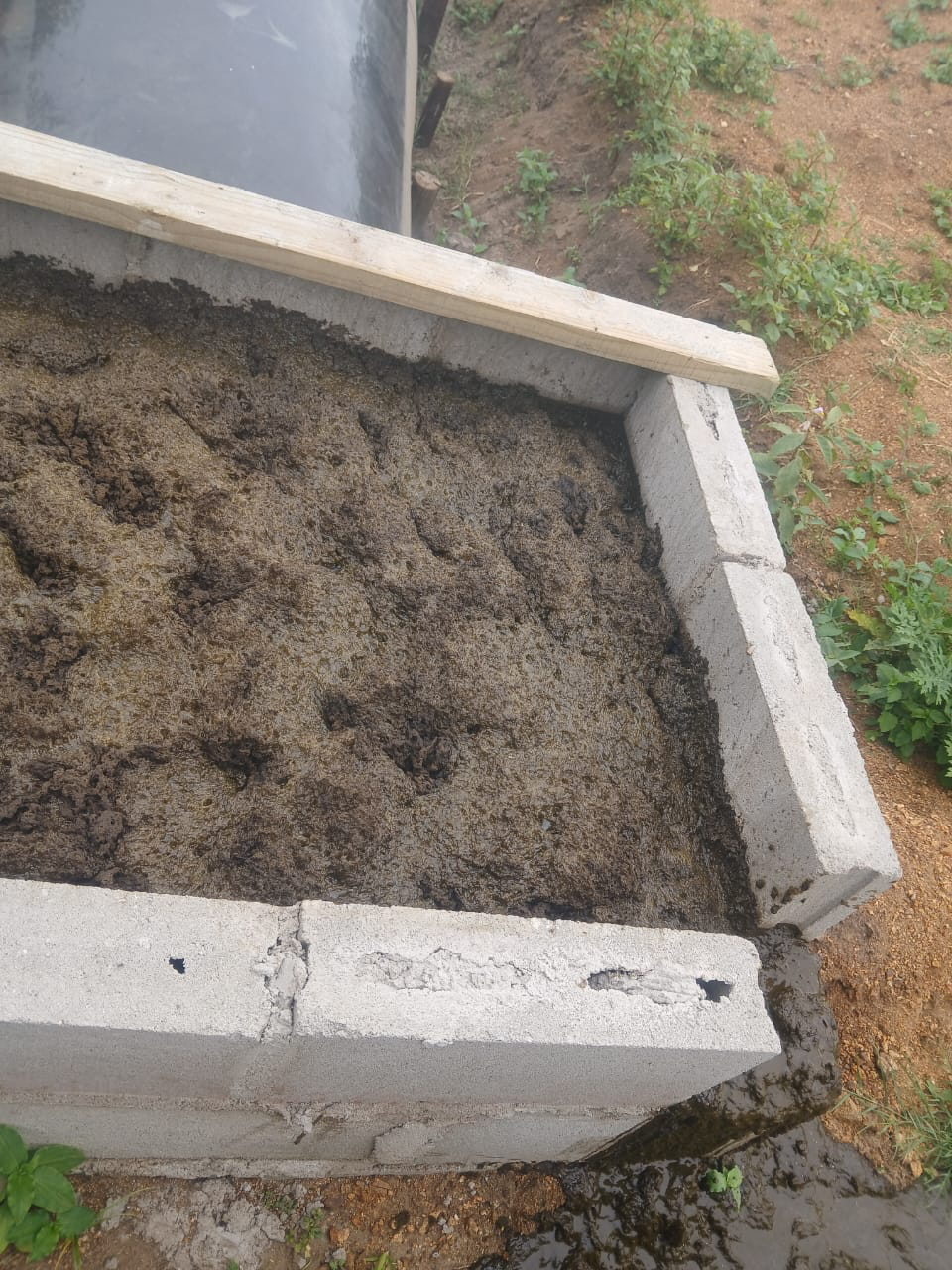

Brick outlet chamber with finished mortar joints

Fig. 23 Step 5b: Completed outlet chamber showing the finished brickwork and outlet opening.#

Cross-section diagram of inlet and outlet chambers showing Hi and Ho heights

Fig. 24 Inlet height (Hi) must always be higher than outlet height (Ho) to ensure gravity-driven slurry flow.#

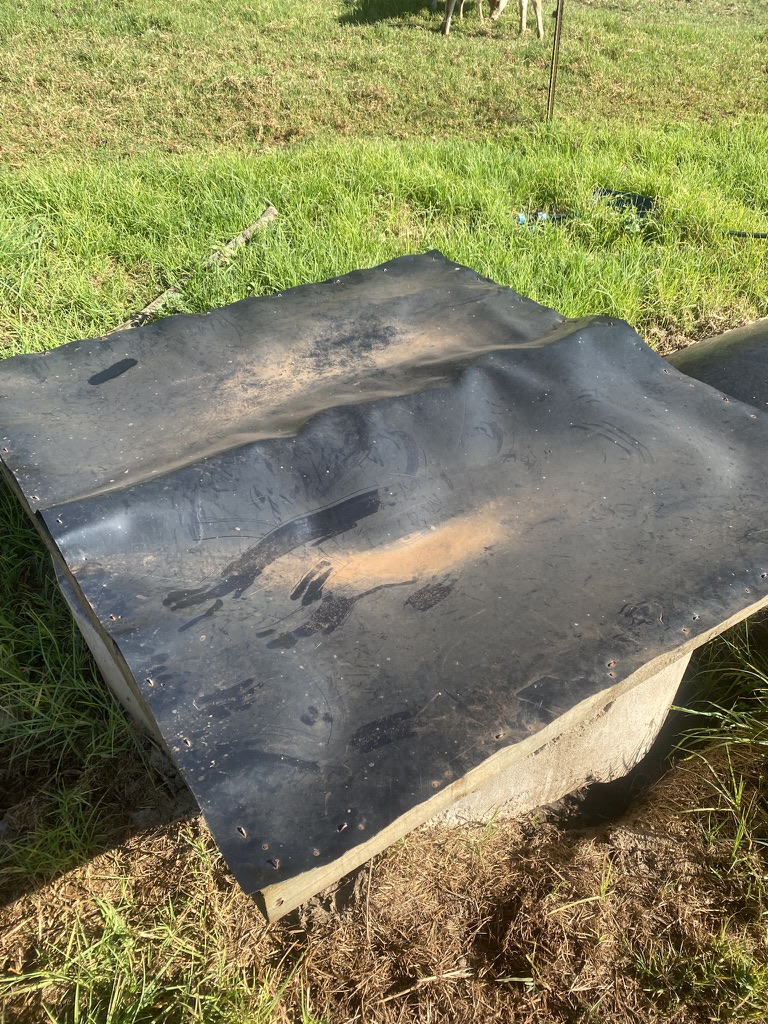

Step 6: Cut and Glue the Bag Sheet#

Cut the pond liner/bag material to the dimensions specified for your digester size. Glue seams according to the manufacturer’s instructions, ensuring a completely airtight seal.

Warning

Test the bag for leaks by inflating gently before installation. Any leaks must be sealed before the bag goes in the ground.

Note

You practised this test back in Session 1 — close the valve, inflate gently, brush soapy water over every seam, and watch for bubbles. If you want a reminder, the interactive simulation is in Session 1: Principles of Biogas.

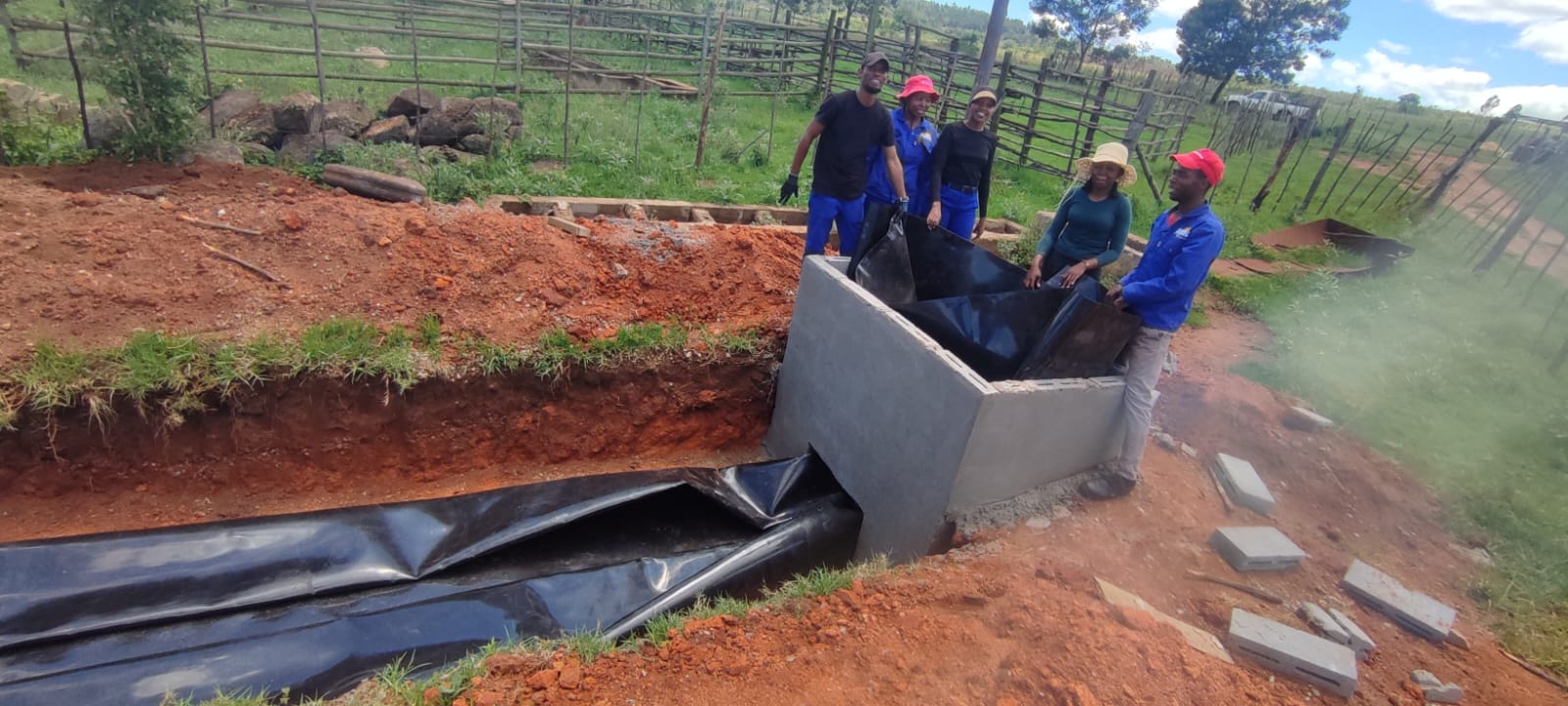

Step 7: Insert the Bag#

Lower the sealed bag into the pit. Connect the inlet and outlet fittings, ensuring all connections are airtight.

Digester bag being lowered into the excavated pit

Fig. 25 Step 7a: The bag is carefully lowered into the pit before the inlet and outlet fittings are connected.#

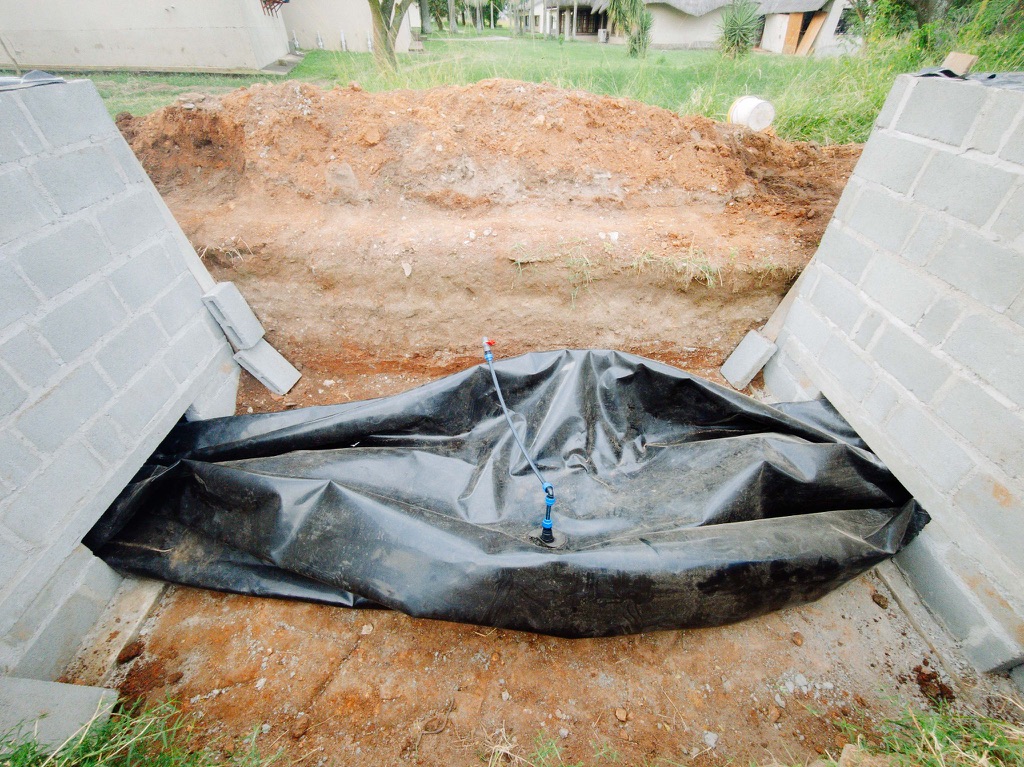

Bag installed in pit with inlet and outlet connections visible

Fig. 26 Step 7b: Bag in position with fittings connected — all joints checked for airtightness before backfilling.#

Step 8: Make Covers for Inlet and Outlet#

Construct covers for the inlet and outlet openings. Attach each cover to the brickwork with a hinge to prevent it from blowing away and damaging the digester bag.

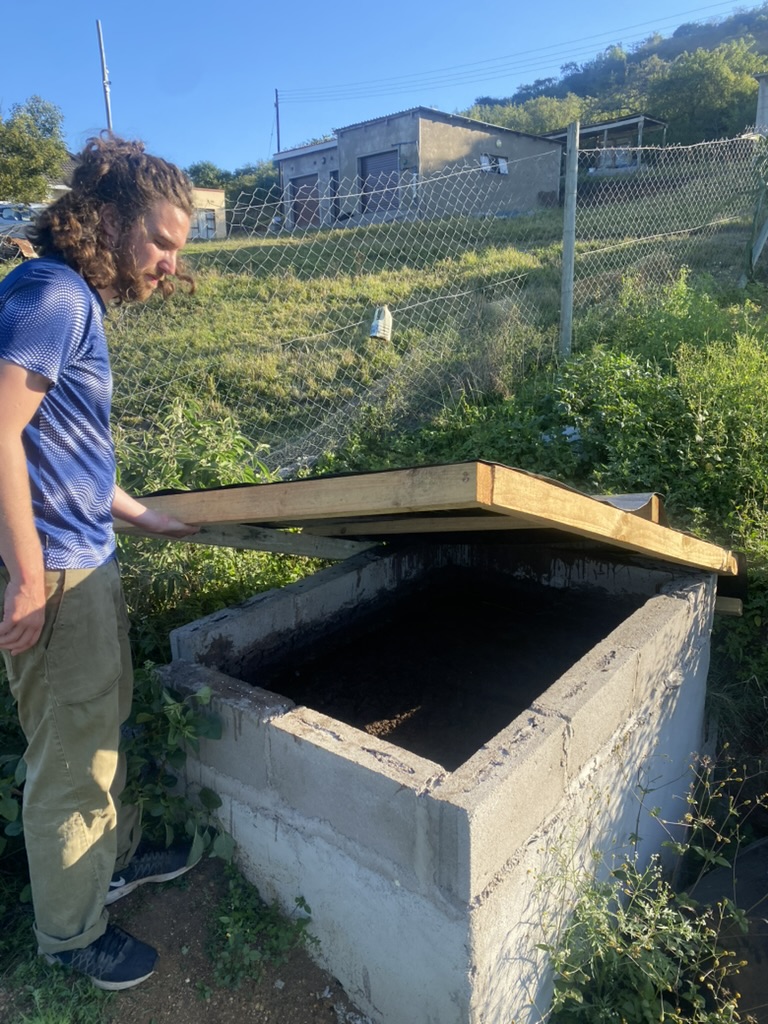

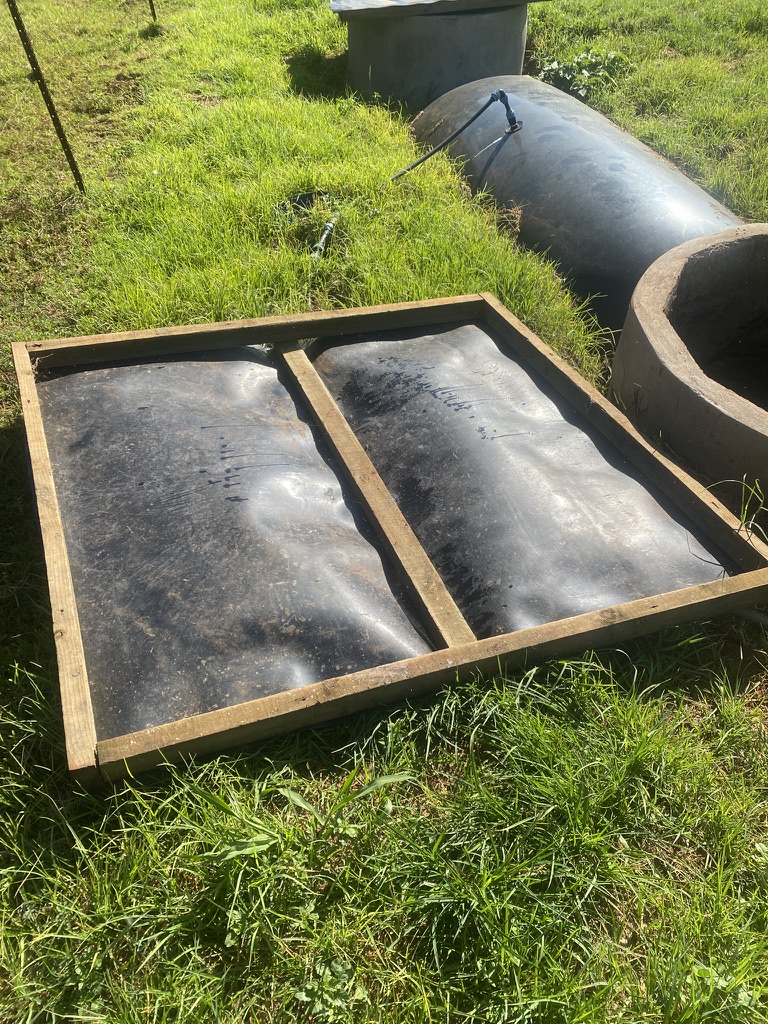

Hinged cover fitted to the inlet opening

Fig. 27 Step 8a: Hinged inlet cover — the hinge prevents wind from carrying the cover away and puncturing the bag.#

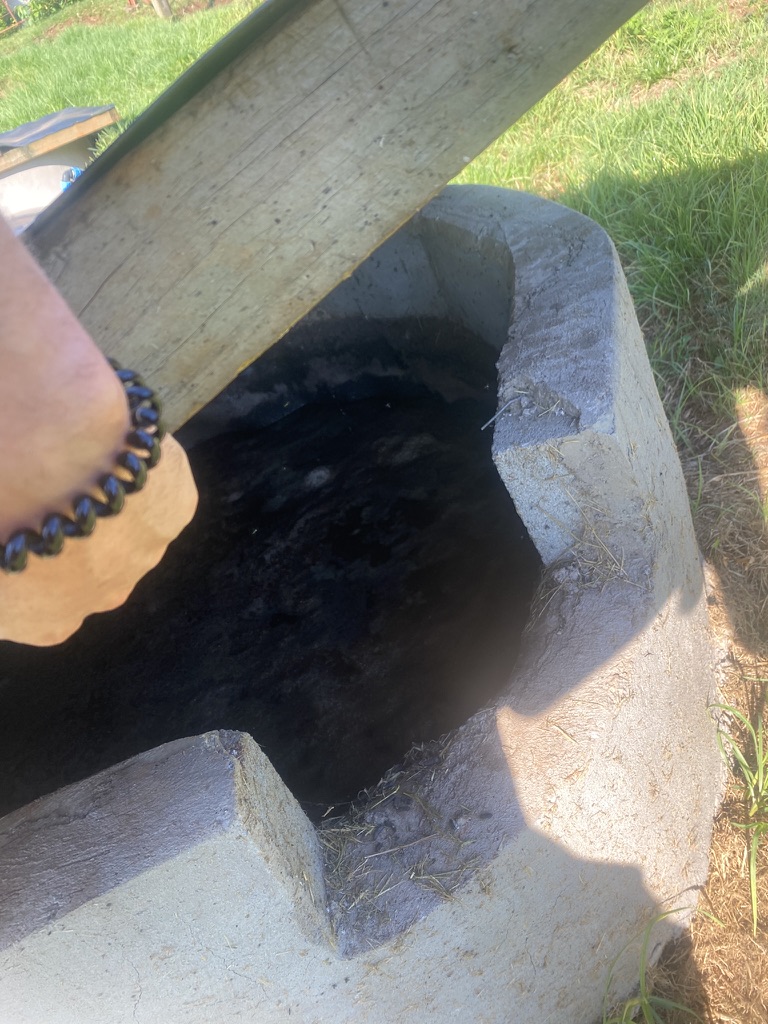

Outlet cover with hinge and securing mechanism

Fig. 28 Step 8b: Outlet cover secured with a hinge. Both covers should open easily for daily feeding and checking.#

Aerial view showing both inlet and outlet covers fitted and the digester area complete

Fig. 29 Step 8 complete: both covers fitted and hinged, and the surface around the digester tidied.#

Step 9: Connect the Pipework#

Run PVC gas pipe from the bag to the point of use (kitchen, stove).

  • Install the bubbler in the gas line as a flashback preventer.

  • Install the steel wool Hâ‚‚S filter after the bubbler.

  • Install a ball valve at the point where the pipe enters the house.

  • Install the main shutoff valve near the digester.

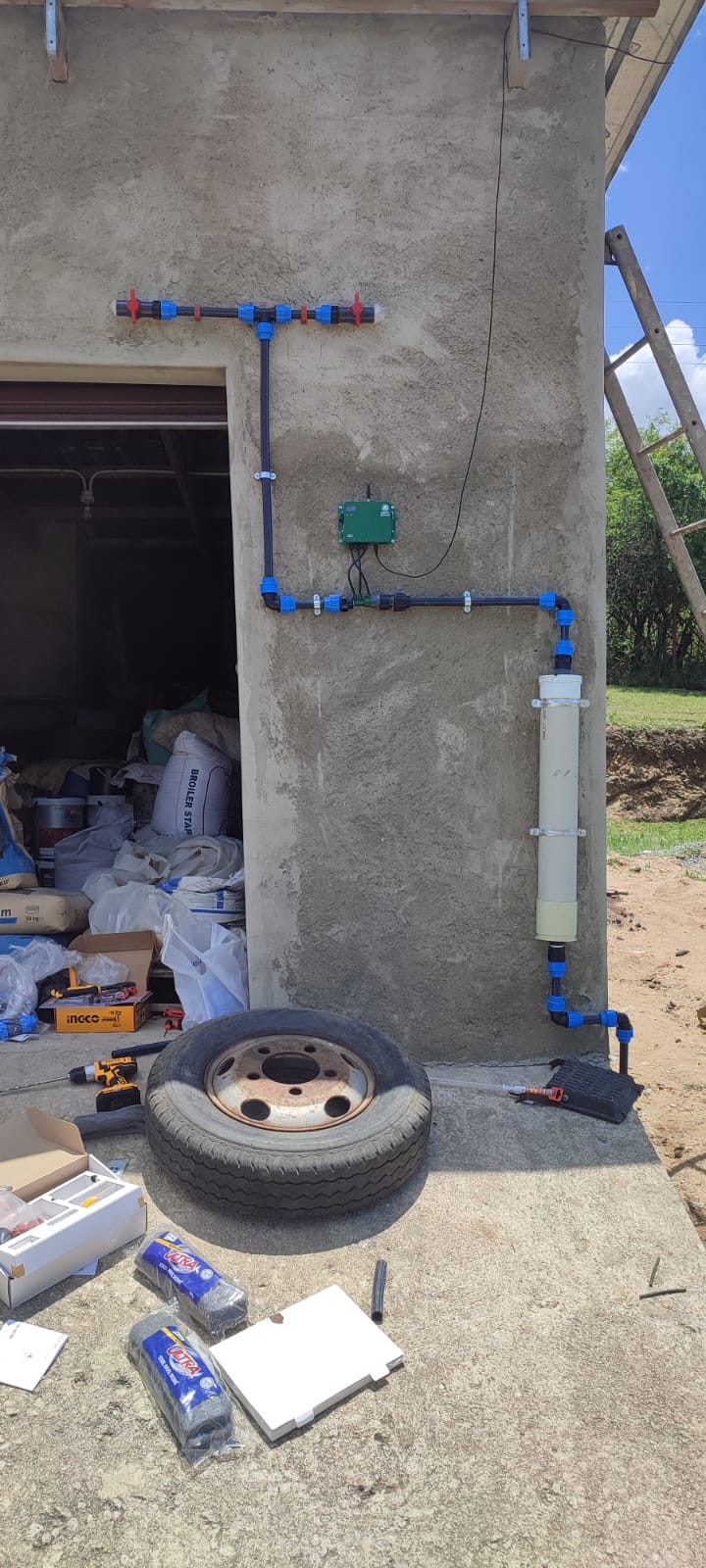

PVC gas pipe run from digester to kitchen with bubbler and Hâ‚‚S filter installed

Fig. 30 Step 9a: Gas pipe run from the digester — bubbler (flashback preventer) and steel wool H₂S filter installed in sequence.#

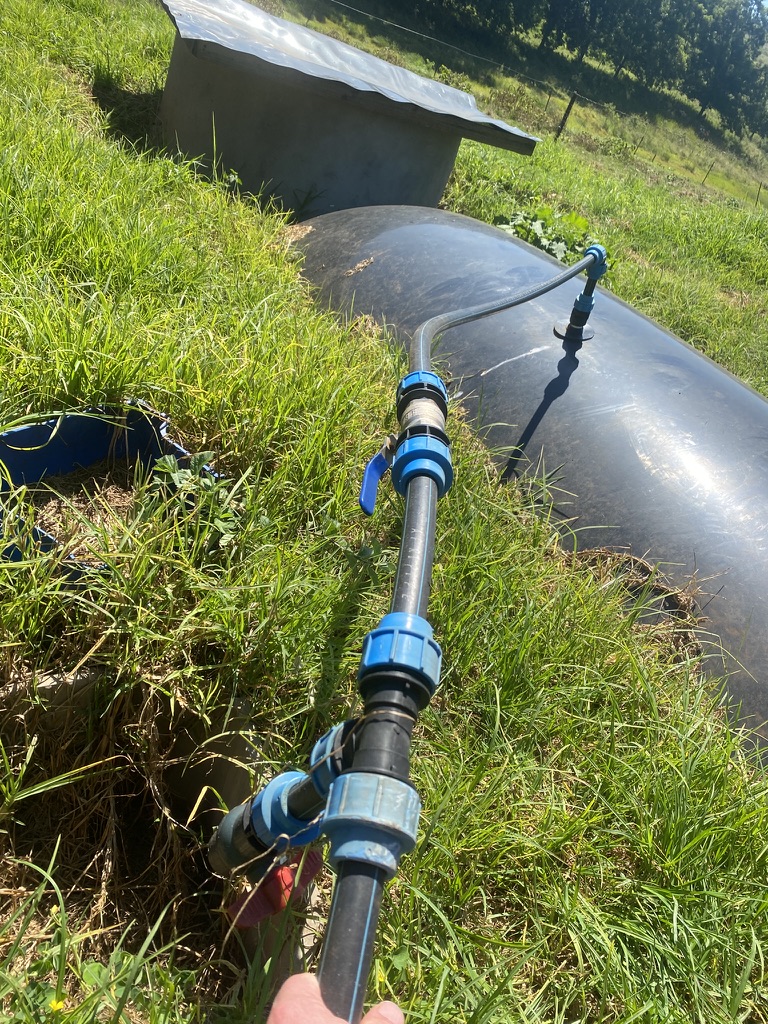

Ball valve and shutoff valve fitted at the digester end of the gas pipe

Fig. 31 Step 9b: Main shutoff valve near the digester and ball valve at the house entry — two independent control points for safe operation.#

Step 10: First Fill#

Mix feedstock (e.g. cow dung) with water at a 1:1 ratio and fill the digester to the correct starting level.

  • The first gas production typically takes 2–4 weeks as the microbial population establishes.

  • Do not use the gas for the first week — vent it. The first gas produced contains mostly COâ‚‚, which will not burn well. Proper methane-rich gas follows.

Checking Your Work#

Before declaring the build complete, run through the full QA checklist below. All items must be ticked before the system is handed over.

✅ Build QA Checklist — tick each item to sign off

0 / 8 complete

Session 7 Quiz#

True / False Q1. The reference line set up at the start of construction is used for all depth measurements throughout the build.

MC Q2. Which is correct regarding inlet height (Hi) and outlet height (Ho)?

Fill in Q3. Before the bag is lowered into the pit, it must be tested for ___ by inflating it and checking for escaping air.

MC Q4. Why should inlet and outlet covers be attached with a hinge?

MC Q5. How long does it typically take for a newly filled digester to produce usable methane-rich gas?

Fill in Q6. The steel wool Hâ‚‚S filter removes toxic hydrogen sulfide from the gas. How often should it be replaced?

Summary#

The key steps are: reference line → excavation → concrete base → brick chambers → bag installation → pipework → first fill.

Take your time on each step — a properly built digester will serve the farm for 10+ years.
